Updating powerGate Customizations

How to update powerGate project implemantations to use the latest powerGate version features

This article describes the necessary changes when updating an ERP integration to be compatible with the latest powerGate update and use its latest features.

PG 21.0.13

Connecting to ERP:

• Replace Write-Error in ConnectToConfiguredErpServer with throw and make sure to call Connect-ERP directly before checking the connection

  function ConnectToConfiguredErpServer {
      Log -Begin
      $powerGateServerErpPluginUrl = CreateUrlFromPGServerName
      if (-not $powerGateServerErpPluginUrl){
          Write-Error -Message "no ERP Server URL specified!"
          return
      }
      else {
          $connected = ConnectToErpServer -PowerGateServerErpPluginUrl $powerGateServerErpPluginUrl
          if (-not $connected) {
              $connectionError = ("Error on connecting to powerGateServer service! Check if powerGateServer is running on following host: '{0}' or try to access following link via your browser: '{1}'" -f (([Uri]$powerGateServerErpPluginUrl).Authority), $powerGateServerErpPluginUrl)
              Write-Error -Message $connectionError
          }
          return $connected
      }
      Log -End
  }

  to

  function ConnectToConfiguredErpServer {
      Log -Begin
      $powerGateServerErpPluginUrl = CreateUrlFromPGServerName
      if (-not $powerGateServerErpPluginUrl){
          throw "No ERP Server URL specified!"
      }

      $connected = Connect-ERP -Service $PowerGateServerErpPluginUrl
      if (-not $connected) {
          throw "Connection to ERP could not be established!! Reason: $($Error[0]) (Source: $($Error[0].Exception.Source))"
      }
      return $connected

      Log -End
  }


• Remove the function ConnectToErpServer. Make sure that Connect-ERP is called one time during the OnLogOn event in Vault and one time in the InitializeWindow function in Inventor.

Error handling:

• Remove the function Get-PgsErrorForLastResponse and replace all its usages with

  if(-not $?) {
      $result = @{
        Entity = $null
        ErrorMessage = $Error[0]
      }
  }
  else {
      $result = @{
        Entity = $erpEntity #Is different in different parts of the code
          ErrorMessage = $null
      }
  }

For example:

function CreateErpMaterial($erpMaterial) {
    Log -Begin
    #TODO: Numbering generation for material creation (only if needed)
    if ($null -eq $erpMaterial.Number -or $erpMaterial.Number -eq "") {
        $erpMaterial.Number = "*"
    }
    #TODO: Properties that need to be set on create
    $erpMaterial.ModifiedDate = [DateTime]::Now

    $erpMaterial = TransformErpMaterial -erpMaterial $erpMaterial
    $erpMaterial = Add-ErpObject -EntitySet $materialEntitySet -Properties $erpMaterial
    $result = Get-PgsErrorForLastResponse -Entity $erpMaterial -WriteOperation
    Log -End
    return $result
}

function CreateErpMaterial($erpMaterial) {
    Log -Begin
    #TODO: Numbering generation for material creation (only if needed)
    if ($null -eq $erpMaterial.Number -or $erpMaterial.Number -eq "") {
        $erpMaterial.Number = "*"
    }
    #TODO: Properties that need to be set on create
    $erpMaterial.ModifiedDate = [DateTime]::Now

    $erpMaterial = TransformErpMaterial -erpMaterial $erpMaterial
    $erpMaterial = Add-ErpObject -EntitySet $materialEntitySet -Properties $erpMaterial
    if(-not $?) {
        $result = @{
            Entity = $erpMaterial
            ErrorMessage = $Error[0]
        }
    }
    else {
        $result = @{
            Entity = $erpMaterial
            ErrorMessage = $null
        }
    }

    Log -End
    return $result
}

PG 22.0.1

Changes to powerGate Client implementation

Dissolve CRUD functions:

The CRUD functions make it hard to do the necessary further changes. To dissolve them we need to replace all calls to the CRUD functions with the powerGate cmdlet that is used within them. When dissolving the function the following things should be achieved.

• Result object should be removed. As powerGate cmdlets are now called directly where they are needed the return value is the actual ERP object
• The powerGate error handling should be used. This means after calling a powerGate cmdlet the $? object can be used to check for errors
• Variable names should be updated to reflect that they now contain ERP objects instead of result objects

Example CreateErpBomHeader:

function CreateErpBomHeader($erpBomHeader) {
    Log -Begin
    #TODO: Property manipulation for bom header create
    $erpBomHeader.ModifiedDate = [DateTime]::Now

    $erpBomHeader = Add-ERPObject -EntitySet $bomHeaderEntitySet -Properties $erpBomHeader
    if(-not $?) {
        $result = @{
            Entity = $erpBomHeader
            ErrorMessage = $Error[0]
        }
    }
    else {
        $result = @{
            Entity = $erpBomHeader
            ErrorMessage = $null
        }
    }
    $result = Get-PgsErrorForLastResponse -Entity $erpBomHeader -WriteOperation
    Log -End
    return $result
}

In Transfer-Boms the call looks like this:

$createErpBomHeaderResult = CreateErpBomHeader -erpBomHeader $erpBomHeader
if($createErpBomHeaderResult.ErrorMessage) {
    Update-BomWindowEntity $vaultBom -Status "Error" -StatusDetails $createErpBomHeaderResult.ErrorMessage
    foreach ($vaultBomRow in $vaultBom.Children) {
        Update-BomWindowEntity $vaultBomRow -Status "Error" -StatusDetails $createErpBomHeaderResult.ErrorMessage
    }
}

As powerGate takes care of connection errors it is possible to simplify the code when moving it up.

• The old function call is replaced by the Get-ERPObject call.
• $? is now used to check for errors.
• Update-BomWindowEntity call for the BOM header is removed completely as powerGate will set errors by itself.
• Update-BomWindowEntity call for the BOM row is updated to set -StatusDetails to the _StatusDetails property of the BOM header.
• The function output is assigned to $null as it is not used in any other places

$null = Add-ERPObject -EntitySet "BomHeaders" -Properties $erpBomHeader
if ($? -eq $false) {
    foreach ($vaultBomRow in $vaultBom.Children) {
        Update-BomWindowEntity $vaultBomRow -Status "Error" -StatusDetails $vaultBom._StatusDetails
    }

    continue
}

List of all CRUD functions:

BomFunctions.psm1

• GetErpBomHeader
• CreateErpBomHeader
• UpdateErpBomHeader
• GetErpBomRow
• CreateErpBomRow
• UpdateErpBomRow
• RemoveErpBomRow

Bom Window:

In order to prevent incorrect messages being shown during check or transfer operations within the BOM window the following changes should be made.

• In Check-Boms remove the "Unknown" -Status assignment loop of BOM headers and children.

  if ($vaultBom._Status -ne "Unknown") {
      Update-BomWindowEntity -InputObject $vaultBom -Status $vaultBom._Status -StatusDetails $vaultBom.Message
      foreach ($vaultBomRow in $vaultBom.Children) {
          Update-BomWindowEntity -InputObject $vaultBomRow -Status $vaultBomRow._Status -StatusDetails $vaultBomRow.Message
      }
      continue
  }

• In CompareErpBom replace all the return statements with a continue statement. The last return statement should be removed completely.
• In CompareErpBom refactor all assignments of the $differences array. Instead of collecting the state of the BOM in the array use the Update-BomWindowEntity cmdlet to update them immediately or remove them where appropriate
  • Errors that are the result of a powerGate cmdlet call on BOM headers should be removed as those are now handled by powerGate
  • Other errors on BOM headers like in the (-not $number) condition still need to be set as they are not the result of a powerGate cmdlet call
  • Errors on bom rows still need to be set in general. Their -StatusDetails can be set to the .StatusDetails property of their parent
  For example:


  $erpBomHeader = Get-ERPObject -EntitySet "BomHeaders" -Keys @{Number = $number } -Expand "BomRows"
  if ($? -eq $false) {
      Log -Message "Error in GetErpBomHeader $($Error[0])"
      $differences += New-Object -Type PsObject -Property @{AffectedObject = $VaultBom; Status = "Error"; Message = $getErpBomHeaderResult.ErrorMessage; IsHeader = $true }
      foreach ($vaultBomRow in $VaultBom.Children) {
          $differences += New-Object -Type PsObject -Property @{AffectedObject = $vaultBomRow; Status = "Error"; Message = $getErpBomHeaderResult.ErrorMessage; IsHeader = $false }
      }

      Log -Message "Return differences error in GetERpBomHeader. $($Error[0])"
      continue
  }

   to

  $erpBomHeader = Get-ERPObject -EntitySet "BomHeaders" -Keys @{Number = $number } -Expand "BomRows"
  if ($? -eq $false) {
      Log -Message "Error in GetErpBomHeader $($Error[0])"
      foreach ($vaultBomRow in $VaultBom.Children) {
          Update-BomWindowEntity -InputObject $vaultBomRow -Status Error -StatusDetails $vaultBOM._StatusDetails
      }
      Log -Message "Return differences error in GetERpBomHeader. $($Error[0])"

      continue
  }

• In Transfer-Boms replace the whole foreach loop


  foreach ($vaultBom in $VaultBoms) { ... }

  with the foreach loop from CompareErpBoms

  foreach ($vaultBom in $VaultBoms) {
      $number = GetEntityNumber -entity $VaultBom

  ...

  }

  Afterwards CompareErpBoms can be removed

Message boxes:

Message boxes might appear behind other windows and lock Vault or Inventor this way. Also multiple messages will be displayed per error if message boxes are used due to powerGate error handling. Therefore message boxes, displaying connection errors, should be removed altogether.

• In ConnectToErpServerWithMessageBox remove

  if (-not $connected) {
      $connectionError = ("Error on connecting to powerGateServer service! Check if powerGateServer is running on following host: '{0}' or try to access following link via your browser: '{1}'" -f (([Uri]$powerGateServerErpPluginUrl).Authority), $powerGateServerErpPluginUrl)
      Write-Error -Message $connectionError
      ShowMessageBox -Message $connectionError -Icon Error
  }

• In CAD.Custom\addins\powerGateMain.ps1/CreateOrUpdateErpMaterial and Vault.Custom\addinVault\powerGateMain.ps1/CreateOrUpdateErpMaterial remove the message boxes from the conditions containing "...ErpMaterialResult.ErrorMessage".
  For example

  $createErpMaterialResult = CreateErpMaterial -erpMaterial $materialTabContext.Entity
  if($createErpMaterialResult.ErrorMessage) {
      ShowMessageBox -Message $createErpMaterialResult.ErrorMessage -Icon "Error" -Title "powerGate ERP - Create Material" | Out-Null
  }
  else {
      ShowMessageBox -Message "$($createErpMaterialResult.Entity.Number) successfully created" -Title "powerGate ERP - Create Material" -Icon "Information" | Out-Null
      $vaultEntity = GetSelectedObject
      SetEntityProperties -erpMaterial $createErpMaterialResult.Entity -vaultEntity $vaultEntity
  }

  to

  $createErpMaterialResult = CreateErpMaterial -erpMaterial $materialTabContext.Entity
  if($createErpMaterialResult.ErrorMessage) {
      return
  }
  ShowMessageBox -Message "$($createErpMaterialResult.Entity.Number) successfully created" -Title "powerGate ERP - Create Material" -Icon "Information" | Out-Null
  $vaultEntity = GetSelectedObject
  SetEntityProperties -erpMaterial $createErpMaterialResult.Entity -vaultEntity $vaultEntity

• In ExecuteErpSearch remove

  if ($searchErpMaterialsResult.ErrorMessage) {
      ShowMessageBox -Message $searchErpMaterialsResult.ErrorMessage -Icon "Error" -Title "powerGate ERP - Search"
  }

Fix misleading errors on Vault tab context switch:

When changing the tab context in Vault a misleading error message could be displayed:

Error occurred while executing powershell function OnTabContextChanged ... The property 'UnitOfMeasure' cannot be found on this object. Verify that the property exists and can be set.

In Vault.Custom\addinVault\powerGateMain.ps1/OnTabContextChanged_powerGate change

function OnTabContextChanged_powerGate($xamlFile) {
    Open-VaultConnection
    if ($xamlFile -eq "ERP Item.xaml") {
        InitMaterialTab
    }
    elseif ($xamlFile -eq "erpBom.xaml") {
        InitBomTab
    }
}

function OnTabContextChanged_powerGate($xamlFile) {
    Open-VaultConnection

    $erpServices = Get-ERPServices -Available
    if (-not $erpServices -or $erpServices.Count -le 0) {
        $dswindow.FindName("lblStatusMessage").Content = "One or more services are not available!"
        $dswindow.FindName("lblStatusMessage").Foreground = "Red"
        $dsWindow.IsEnabled = $false

        return
    }
    if ($xamlFile -eq "ERP Item.xaml") {
        InitMaterialTab
    }
    elseif ($xamlFile -eq "erpBom.xaml") {
        InitBomTab
    }
}

<Label Margin="14,0,0,0" FontSize="14" FontWeight="Medium" VerticalAlignment="Center">
    <Label.Style>
        <Style TargetType="{x:Type Label}" BasedOn="{StaticResource {x:Type Label}}">
            <Setter Property="Content" Value="ERP: Create Material"/>

<Label x:Name="lblStatusMessage" Margin="14,0,0,0" FontSize="14" FontWeight="Medium" VerticalAlignment="Center">
    <Label.Style>
        <Style TargetType="{x:Type Label}" BasedOn="{StaticResource {x:Type Label}}">
            <Setter Property="Content" Value="ERP: Create Material"/>

<Label Margin="14,0,0,0" FontSize="14" FontWeight="Medium" VerticalAlignment="Center">
    <Label.Style>
        <Style TargetType="{x:Type Label}">
            <Setter Property="Content" Value="ERP: Bill Of Material"/>

<Label x:Name="lblStatusMessage" Margin="14,0,0,0" FontSize="14" FontWeight="Medium" VerticalAlignment="Center">
    <Label.Style>
        <Style TargetType="{x:Type Label}">
            <Setter Property="Content" Value="ERP: Bill Of Material"/>

powerEvents:

Changes to powerGate Server

The webservice path needs to be prefixed with a 'PGS/' to ensure it can be distinguished in situations without any response.

Afterwards the url to the PGS plugin must be adapted within all custom ERP integrations: 'Connect-ERP 'http://{pgs-machine}:8080/PGS/{my_original_path}/{my_web_service_name}'

23.0.1

Updating Download-Setups:

Projects based on powerGateTemplate (e913355 and earlier):

• The name of the powerGate setup file changed and includes a '_Vault{Version}.exe' suffix. Change the powerGate setup name from

  "powerGate" = @{
      "2020" = "https://coolorangedownloads.blob.core.windows.net/downloads/cO_powerGate21.0.exe"
      "2021" = "https://coolorangedownloads.blob.core.windows.net/downloads/cO_powerGate21.0.exe"
      "2022" = "https://coolorangedownloads.blob.core.windows.net/downloads/cO_powerGate21.0.exe"
  }

  to

  "powerGate" = @{
      "2021" = "https://coolorangedownloads.blob.core.windows.net/downloads/cO_powerGate23.0_Vault2021.exe"
      "2022" = "https://coolorangedownloads.blob.core.windows.net/downloads/cO_powerGate23.0_Vault2022.exe"
      "2023" = "https://coolorangedownloads.blob.core.windows.net/downloads/cO_powerGate23.0_Vault2023.exe"
  }


• PowerEvents is now installed by the powerGate installer. Remove the powerEvents setup download

  "powerEvents" = @{
      "2020" = "https://coolorangedownloads.blob.core.windows.net/downloads/cO_powerEvents22.0_Vault2020.exe"
      "2021" = "https://coolorangedownloads.blob.core.windows.net/downloads/cO_powerEvents22.0_Vault2021.exe"
      "2022" = "https://coolorangedownloads.blob.core.windows.net/downloads/cO_powerEvents22.0_Vault2022.exe"
  }

23.0.4

- Multiple `Connect-ERP` cmdlet usages within Vault Client and Inventor can slow down the application startup and lead to multiple error dialogs beeing displayed on connection problems. The ConnectToConfiguredErpServer usage during powerEvents import routines must therefore be removed. -> please verify the need for the Remove-Module usage. Only when DataStandard OnLogon functionalities are not used, the powerEvent scripts should instead invoke this function on its own. In DataStandard for Vault 2022 and earlier versions, the module becomes imported in several PowerShell Runspaces, so also when closing the Vault Client. Connection Error dialogs can than prevent the process from terminating.

- The InitializeWindow and OnLogOn functions cause multiple connections to powerGateServer or ERP again. In order to prevent performance problems with slow ERP systems and many Connection Error Dialogs beeing displayed at the start of the Vault Client, the function `ConnectToErpServerWithMessageBox` should be called by only one of these functions (if possible te OnLonOn).

24.0.13

In addition to the configurability of ERP list-values, there is also a new ERPCombobox control to display them.

Regular WPF ComboBoxes can be easily replaced with the ERPComboBox using the following steps.

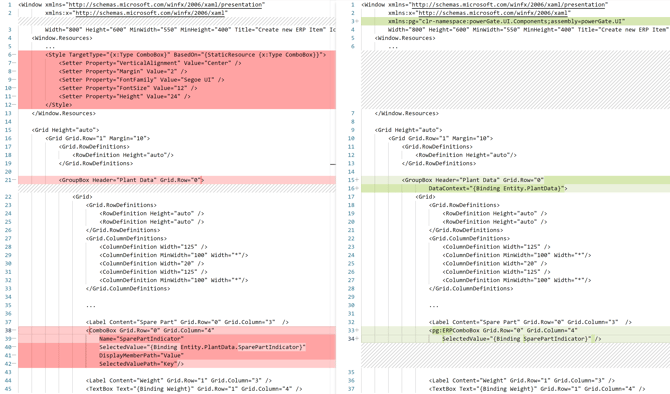

1. In the xaml code, the ComboBox control can be replaced as follows:

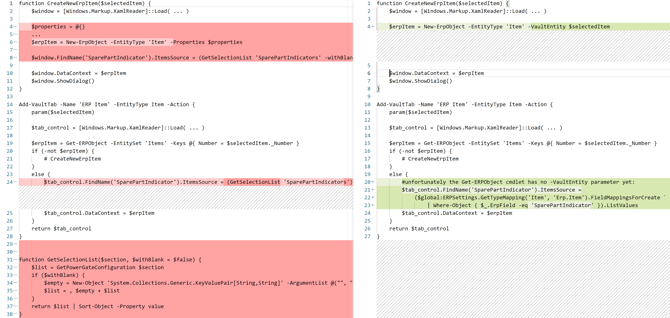

2. in the powershell script code can be reduced, especially in the Create area (including sorting and blank-value display)

3. A Vault administrator must now manually transfer the list-values from the original powerGateConfiguration.xml file to the Configuration Dialog:

To achieve this, add all <Entry Key="..." Value="..." /> entries to the Possible Values list for the respective ERP field (e.g. SparePartIndicators). Entries for empty values can be ignored.

Note: If there are a lot of entries involved, take a look at these programming examples for possible automations: Retrieve values for drop-down lists live from ERP.

4. Finally you can remove all switch and if statements that translate specific Vault values to corresponding ERP values from PowerShell scripts.

Configure a Vault Property mapping for these ERP fields. Then simply use the List-Values dialog to map the previously programmed Vault values to the corresponding ERP values.

Within the BOM Window:

To ensure only configured ERP values beeing transferred for automatic Item creations, consider extending the New-ERPObject -VaultEntity line with the following validation:

$erpItem = $file | New-ERPObject -EntityType 'Item'

if($erpItem.psobject.Error) {
   $file | Update-BomWindowEntity -Status Error -StatusDetails $erpItem.psobject.Error
   continue
}
...
